SS540 structural steel plate is a structural hot rolled steel in the form of plates, sheets & strips for general structural applications. SS540 carbon steel sheet is a material grade and designation defined in JIS G3101 standard. JIS G3101 is a Japanese material standard for hot Rolled steel plates, sheets, strips for general structural usage.

Due to its higher strength and minimum yield strength above 400 Mpa, JIS G3101 SS540 steel plate is widely used in general mansions, plants building and all kinds of construction machinery, such as mines and various types of drilling rig used in construction, power shovel, hydraulic support, coal mining machinery and equipment and other structures. SS 540 steel plate’s equivalent grade is DIN 17102 STE 380, NFA 36201 E 375R, MNC 810E SS21,42,01, CSA G40-21 400 W, WT, ASTM A 572 gr. 60 & 65.

JIS G3101 SS540 Comparision of steel grades
DIN 17102 STE 380
NFA 36201 E 375R
MNC 810E SS21,42,01
CSA G40-21 400 W, WT
ASTM A 572gr. 60,65

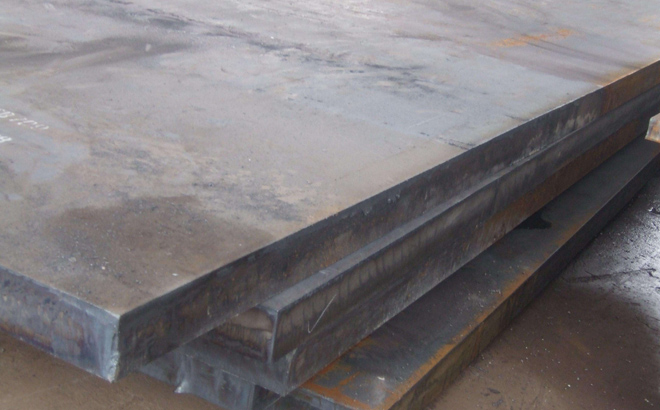

G3101 SS540 Steel Plate and Sheet

JIS G3101 SS540 Steel Chemical Composition %
Grade Chemical composition
  C max Si max Mn max P max S max
Grade60 0.26 0.40 1.35 0.04 0.05
Grade65 0.26 0.40 1.35 0.04 0.05
JIS G3101 SS540 Steel Mechanical Properties
Grade Yield Point min MPa Tensile Strength MPa Elongation in 2 in.(50mm)%
Grade A 165 310-450 30 min
Grade B 185 345-450 28 min
Grade C 205 380-515 25 min
Grade D 230 415-550 23 min
  • Type: steel plate/sheet
  • Standard: EN
  • Thickness:6mm-500mm
  • Width:1500mm-4200mm
  • Length:3000mm-18000mm
  • Delivery time: Promptly ( Stock) or 10-40 days (Production)
  • Stock: some are Available
  • Packaging Details: following the packaging export standard
  • MTC: Available
  • Payment Term : T/T or L/C At sight.
  • Reduction in cross section on fracture Z (%):31 Brinell hardness (HBW):134
  • As-Heat-Treated Condition: Solution and Aging, Annealing, Ausaging, Q+T,etc

If you are interested in other JIS G3101 steel plates, please feel free contact us for more information.
