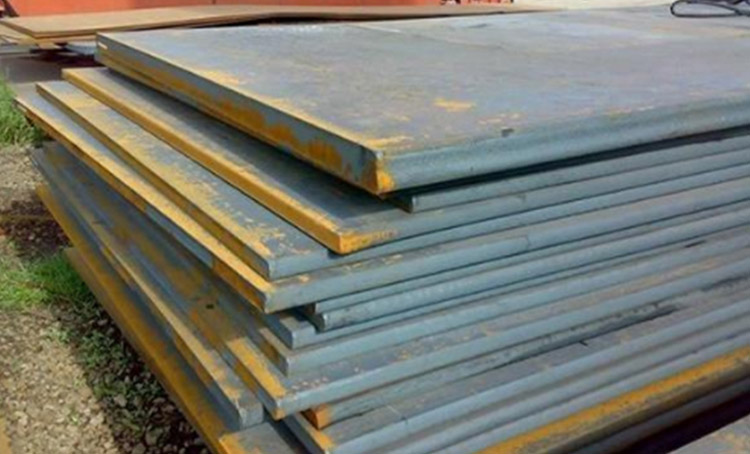

NM360 wear resistant steel

Chemical Composition (%) of NM360 Wear Resistant Steel

C	Si	Mn	P	S	Cr	Mo	Ni	B
≤0.17	≤0.50	≤1.5	≤0.025	≤0.015	≤0.70	≤0.40	≤0.50	≤0.005

Mechanical Properties of NM360 Wear Resistant Steel

Thickness/mm	ReL /MPa	Rm /MPa	A/%	Hardness HBW10/3000	Impact -20℃/J
20	1050	1160	19.0	360.0	65
25	1020	1180	18.5	375.0	52
30	1040	1180	17.0	369.0	65
40	1020	1160	18.0	368.0	68

Contrast Test of Wear Resistance

Test Group	Grade	Wear Test
A	WZB-NM360	1.16
A	EEMS10104 (Sweden)	1.00
B	WZB-NM400	1.21
B	NK-EH400 (Japan)	1.00

Specification Range of NM360 Wear Resistant Steel Plate:

Thickness: 8mm-300mm
Width:1500mm-4020mm
Length: 3000mm-18000mm
Adopting standards: WYJ030-2005
Dimensin,shape,weight and allowable deviation according to standards: GB709-88 or EN10029
Supplied in the as-rolled condition: Q&T or Tempered
Ultrasonic test: GB/T2970-91 or EN10160-1999
Delivery time: 30-60 days
Payment term: T/T or L/C
Minimal order:1 pcs

Gas Cutting Characteristics of NM360 Wear Resistant Steel:

Gas Cutting Processing is allowed. Applying high pressure gas and low cutting speed to prevent split in cutting area. When cutting outside, preheating temperature 60 -90℃ in cutting area with flame spraying gun be recommended before the cutting.

Machining Characteristics of NM360 Wear Resistant Steel:

Cutting and Shearing Property of the plate perform well. Proper feed amount and feed rate should be selected according to hardness of plate and cutting tool. The tools’ materials usually are high speed steel or cemented carbide, for cutting and polishing, carbide-coated tool is demanded.
