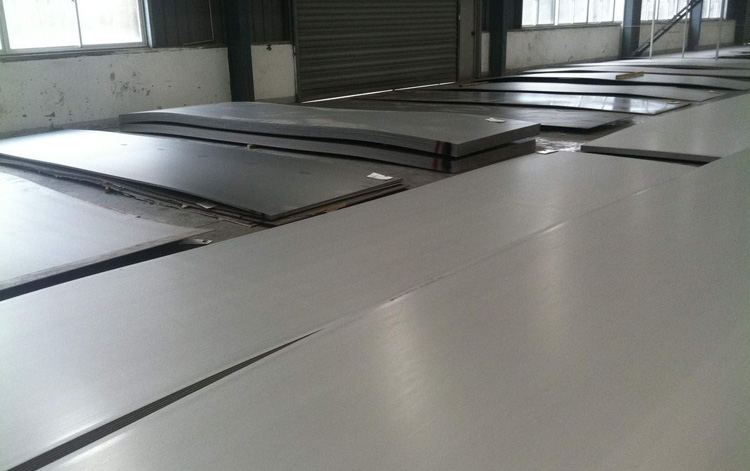

317/317L stainless steel plate

317/317L Stainless Steel

Chemical Composition (%) of 317/317L Stainless Steel Plate

Carbon	Silicon	Sulfur	Phosphorus	Chromium	Molybdenum	Manganese	Nickel	Nitrogen
0.030	0.75	0.030	0.045	18.0-20.0	3.0-4.0	2.00	11.0-15.0	0.10

Mechanical Properties of 317/317L Stainless Steel Plate

Yield Strengtd 0.2% Offset		Ultimate Tensile Strength		Elongation in 2 in.	Hardness
psi (min.)	(MPa)	psi (min.)	(MPa)	% (min.)	(max.)
30,000	205	75,000	515	40	95 Rockwell B

Physical Properties of 317/317L Stainless Steel Plate

Density lb/inᶟ	0.285
Density g/cmᶟ	7.89
Melting Range	2540-2630°F/1390 – 1440 °C
Thermal Conductivity at 212°F (100°C)	8.7 BTU/hr/ft²/ft/°F
Thermal Conductivity at 212°F (100°C)	1.26 W/m-°K
Electrical Resistivity	33.5 Microhm-in at 68°C
Electrical Resistivity	85.1 Microhm-cm at 20°C

317/317L is a molybdenum-bearing austenitic stainless steel with greatly increased resistance to chemical attack as compared to the conventional chromium-nickel austenitic stainless steels such as Alloy 304. In addition, Alloy 317L offers higher creep, stress-to-rupture, and tensile strength at elevated temperatures than conventional stainless steels. It is a low carbon or "L" grade which provides resistance to sensitization during welding and other thermal processes.

Alloy 317L is a lowcarbon corrosion resistant austenitic chromium-nickel-molybdenum stainless steel. The high levels of these elements assure the alloy has superior chloride pitting and general corrosion resistance to the conventional 304/304L and 316/316L grades. The alloy provides improved resistance relative to 316L in strongly corrosive environments containing sulfurous media, chlorides, and other halides.

The low carbon content of Alloy 317L enables it to be welded without intergranular corrosion resulting from chromium carbide precipitation enabling it to be used in the as-welded condition. With the addition of nitrogen as a strengthening agent, the alloy can be dual certified as Alloy 317.

Alloy 317L is non-magnetic in the annealed condition. It cannot be hardened by heat treatment, however the material will harden due to cold working. Alloy 317L can be easily welded and processed by standard shop fabrication practices.
