347H stainless steel plate

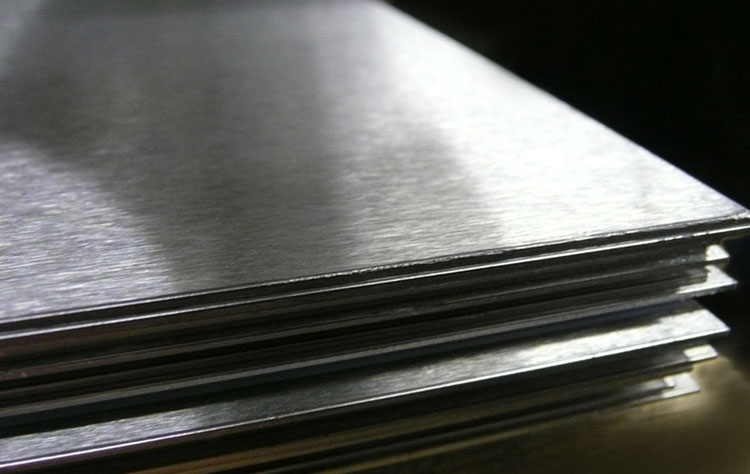

347H Stainless Steel Sheet Supplier

Chemical Composition (%) of 347H Stainless Steel Plate
Chromium Nickel Carbon Silicon Manganese Phosphorus Sulfur
17.00-19.00 9.00-13.00 0.04-0.10 0.75 2.00 max 0.045 max 0.03 max
Mechanical Properties of 347H Stainless Steel Plate
Yield Strength 0.2% Offset Ultimate Tensile Strength Elongationin 2 in. Hardness
psi (min.) (MPa) psi (min.) (MPa) % (min.) (max.)
30,000 205 75,000 515 40 201 Brinell
Physical Properties of 347H Stainless Steel Plate
Density (lb. / cu. in.) Specific Gravity Specific Heat (Btu/lb Deg F – [32-212 Deg F]) Melting Range Modulus of Elasticity
0.288 7.96 0.12 2550 – 2635°F 28.0 x 106psi
193 GPa

Alloy 347H is a stabilized, austenitic, chromium, stainless steel containing columbium which allows for the elimination of carbide precipitation, and, consequently, intergranualr corrosion. Alloy 347H is stabilized by the additions of chromium and tantalum and offers higher creep and stress rupture properties than alloy 304 and 304L which may also be used for exposures where sensitization and intergranualr corrosion are of concern. The addition of columbium also allows Alloy 347 to have excellent corrosion resistance, even superior to that of alloy 321H.  347H is the higher carbon composition form of Alloy 347 and demonstrates improved high temperature and creep properties.

Type 347H Major Design Features Include:

  • Similar resistance and corrosion protection as Alloy 304
  • Used for heavy welded equipment when annealing is not possible
  • Good oxidation resistance, on par with most other austenitic stainless steels
  • Higher carbon allows for better high temperature creep properties
347H Applications:
  • Boiler tubes and casings
  • Oil and gas refinery piping
  • Radiant superheaters
  • High-pressure steam pipes
  • Heat exchanger tubes
  • Cabin heaters
  • Heavy wall-welded equipment
  • Aircraft exhaust stacks and collector rings
