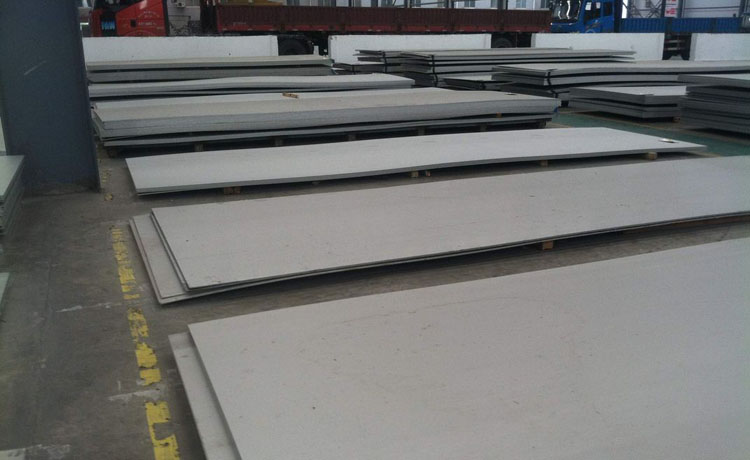

904L stainless steel plate

904L stainless steel sheet

Chemical Composition (%) of 904L Stainless Steel Plate
Chromium Nickel Molybdenum Silicon Manganese Phosphorus Copper Sulfur
19.00-23.00 23.00-28.00 4.0-5.0 1.00 2.00 max 0.045 max 1.0-2.0 0.03 max
Mechanical Properties of 904L Stainless Steel Plate
Yield Strength 0.2% Offset Ultimate Tensile Strength Elongationin 2 in. Hardness
psi (min.) (MPa) psi (min.) (MPa) % (min.) (max.)
31,000 220 71,000 490 36 70-90 Brinell
Physical Properties of 904L Stainless Steel Plate
Density (lb. / cu. in.) Specific Gravity Specific Heat (Btu/lb Deg F – [32-212 Deg F]) Melting Range Modulus of Elasticity
0.287 7.95 0.11 2372 – 2534°F 28.0 x 106psi
190 GPa

Type 904L is a high alloy austenitic stainless steel that is known for its corrosion properties. This low carbon version of Type 904 stainless steel also offers other benefits to users including:

  • Non-magnetic
  • Stronger corrosion properties than Type 316L an 317L
  • Good resistance to sulphuric, phosphoric and acetic acids
  • High resistance to crevice and stress corrosion cracking
  • Excellent formability and weldability

With its highly alloyed chemistry — 25% nickel and 4.5% molybdenum, 904L provides good chloride stress corrosion cracking resistance, pitting and general corrosion resistance superior to 316L and 317L molybdenum enhanced stainless steels.

Alloy 904L was originally developed to withstand environments containing dilute sulfuric acid. It also offers good resistance to other inorganic acids such as hot phosphoric acid as well as most organic acids.

Alloy 904L is easily welded and processed by standard shop fabrication practices.
