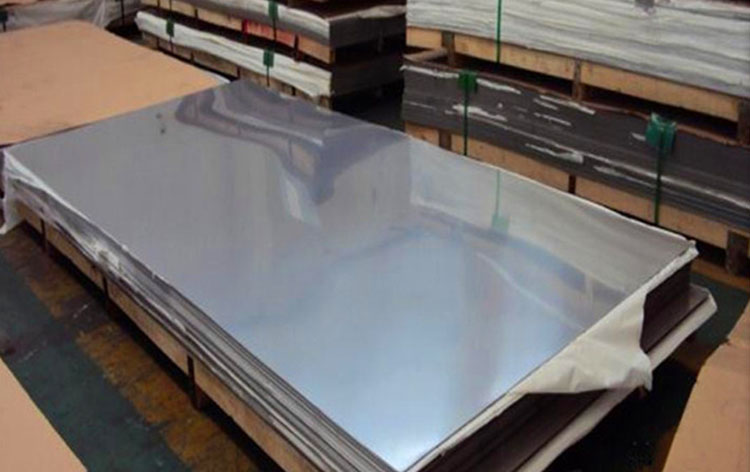

409 stainless steel plate

Chemical Composition (%) of 409 Stainless Steel Plate
C Mn Si P S Cr Ni Ti
0.08 1.0 1.0 0.045 0.045 10.5-11.75 0.5 0.48 0.75
Mechanical Properties of 409 Stainless Steel Plate
Tensile Strength MPa (min) Yield Strength 0.2% MPa(min) Elongation % Hardness (Brinell) MAX Hardness (Rockwell B) MAX
380 207 20 207 95
Physical Properties of 409 Stainless Steel Plate
Density
lbm/in3		 thermal Conductivity
(BTU/h ft. °F)		 Electrical
Resistivity
(in x 10-6)		 Modulus of
Elasticity
(psi x 106		 Coefficient of
thermal Expansion
(in/in)/
°F x 10-6		 Specific Heat
(BTU/lb/
°F)		 Melting
Range
(°F)
at 68°F: 0.280 9.4 at 212°F 28.3 at 68°F 29 5.84 at 32 – 212°F 0.114 at 68°F to 212°F 2500 to 2590
  12.4 at 932 °F 39.4 at 752°F   6.60 at 32 – 1000°F
    49.6 at 1652 °F   6.86 at 32 – 1500°F

Alloy 409 is a general purpose, chromium, titanium stabilized, ferritic stainless steel whose primary application is automotive exhaust systems. It contains 11% chromium which is the minimum amount for the formation of the passive surface film which gives stainless steels their corrosion resistance. It combines good elevated temperature corrosion resistance with medium strength, good formability, and overall cost.

Alloy 409 resists corrosion strongly compared to carbon steel and is used as an alternative to carbon steel in mildly challenging environments where its high resistance to corrosion and high temperature oxidation gives an advantage. It is commonly used in applications where appearance is a secondary quality to mechanical properties and corrosion resistance.
